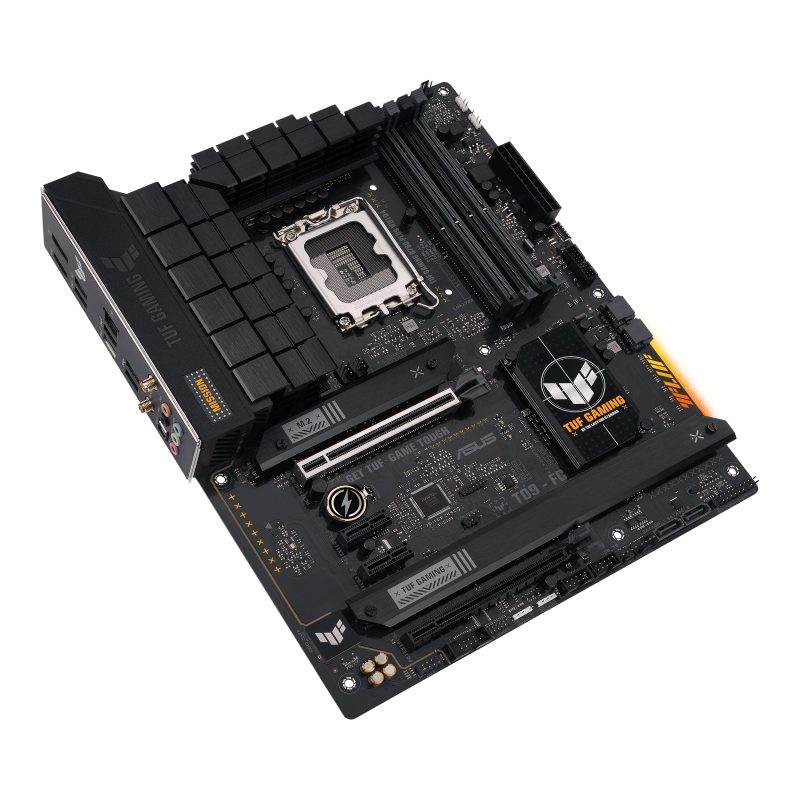

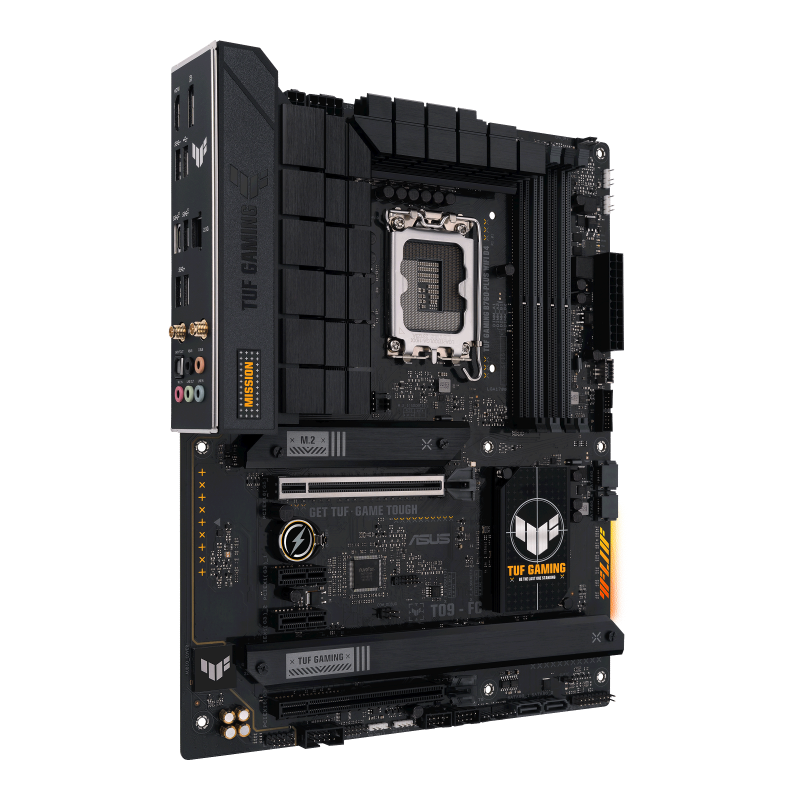

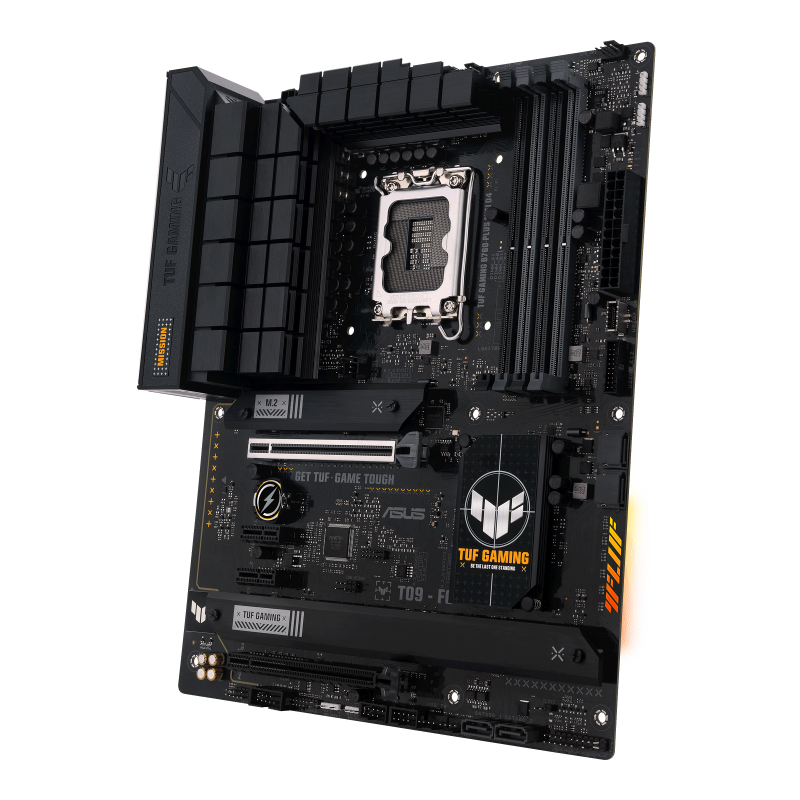

TUF GAMING B760-PLUS WIFI D4 LGA 1700 MOTHERBOARD

| June 5, 2024 | MOTHERBOARDS | No Comments

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
SMB00183
TUF GAMING B760-PLUS WIFI D4 LGA 1700
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
$175.00

  • Model
  • TUF GAMING B760-PLUS WIFI D4
  • CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
  • Intel® B760 Chipset
  • Memory
  • 4 x DIMM, Max. 192GB, DDR4
  • 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
  • Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
  • Expansion Slots
  • Intel® 13th & 12th Gen Processors
  • 1 x PCIe 5.0 x16 slot
  • Intel® B760 Chipset
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)*
  • 2 x PCIe 3.0 x1 slots*
  • * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
  • – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  • Storage
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
  • Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
  • Wireless & Bluetooth
  • Wi-Fi 6
  • 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth® v5.2*
  • *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”
  • USB
  • Rear USB (Total 6 ports)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 3 x USB 3.2 Gen 1 ports (3 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • – Audio Shielding
  • – Rear optical S/PDIF out port
  • – Premium audio capacitors
  • – Dedicated audio PCB layers
  • – Audio cover

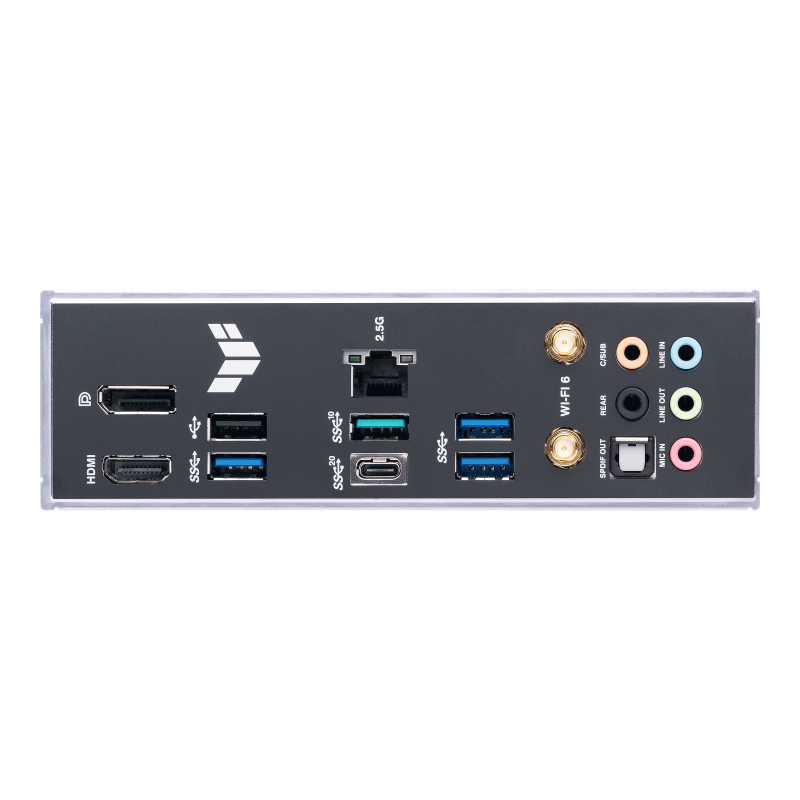

  • Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 3 x USB 3.2 Gen 1 ports (3 x Type-A)
  • 1 x USB 2.0 port (1 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ (USB4®) header
  • Special Features
  • ASUS TUF PROTECTION
  • – DIGI+ VRM (- Digital power design with DrMOS)
  • – ESD Guards
  • – TUF LANGuard
  • – Overvoltage Protection
  • – SafeSlot Core+
  • – Stainless-Steel Back I/O
  • ASUS Q-Design
  • – M.2 Q-Latch
  • – Q-DIMM
  • – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • – Q-Slot
  • ASUS Thermal Solution
  • – M.2 heatsink
  • – VRM heatsink design
  • ASUS EZ DIY
  • – CPU Socket lever protector
  • – ProCool
  • – Pre-mounted I/O shield
  • – SafeSlot Core+
  • – SafeDIMM
  • Aura Sync
  • – Aura RGB header
  • – Addressable Gen 2 headers
  • Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • – Aura Creator
  • – Aura Sync
  • – Fan Xpert 4
  • – Power Saving
  • – Two-Way AI Noise Cancellation
  • AI Suite 3
  • – DIGI+ VRM
  • – PC Cleaner
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • MyASUS
  • Norton 360 for Gamers
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
  • BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
  • WOL by PME, PXE
  • Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous

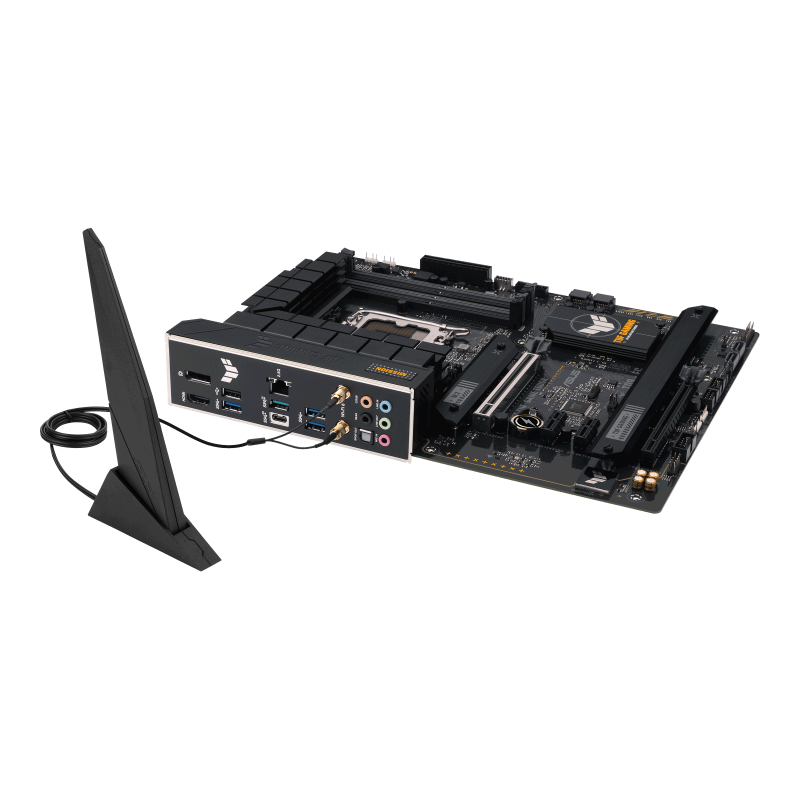

  • 1 x ASUS Wi-Fi moving antenna
  • 1 x TUF Gaming sticker
  • 2 x M.2 Rubber Packages
  • 1 x Screw package for M.2 SSD
  • Documentation
  • 1 x TUF Certification card
  • 1 x User guide
  • Operating System
  • Windows® 11, Windows® 10 64-bit
  • Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
