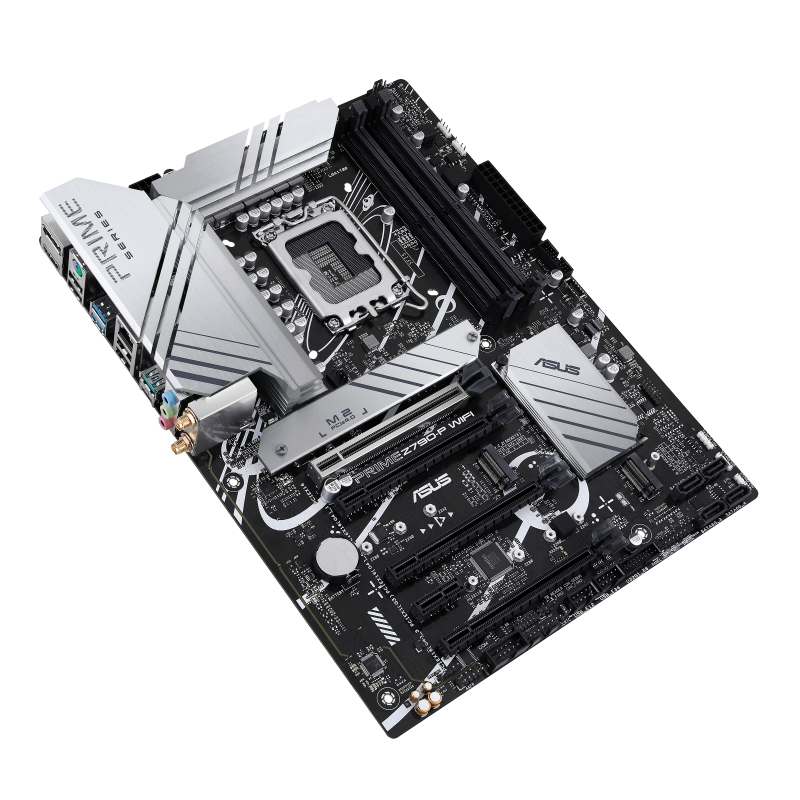

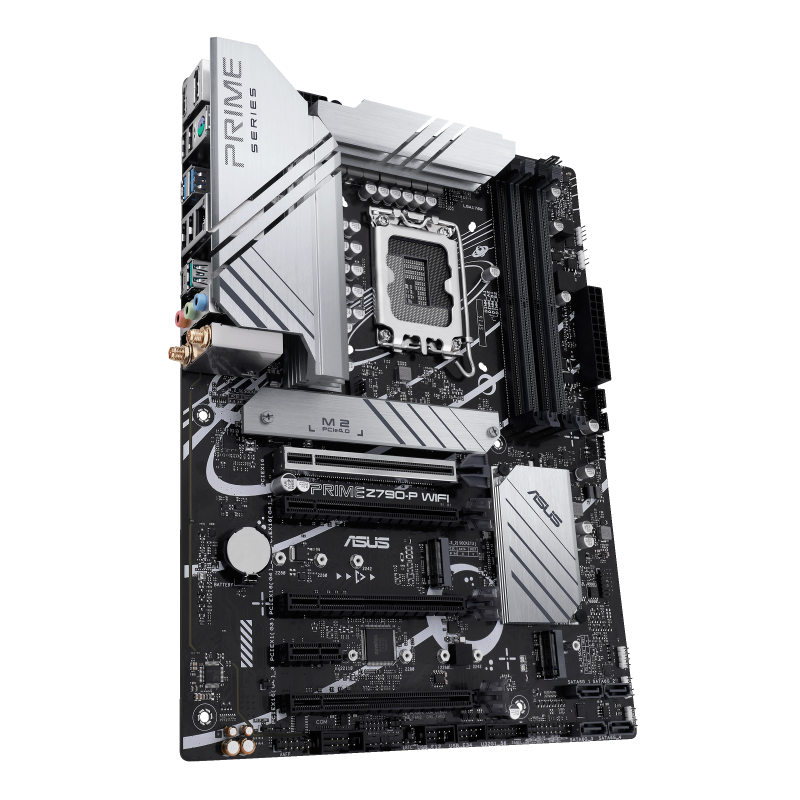

ASUS MOTHERBOARD PRIME Z790-P WIFI-CSM

SMB00202
PRIME Z790-P WIFI-CSM
(4x DDR5, MAX 192GB, Up to 7200+(OC) MHz / M.2 Slots 3 / HDMI Port x1 / Display Port x1 / ATX )”   LGA 1700
$235.00

Model:
PRIME Z790-P WIFI-CSM
CPU:
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel® Z790 Chipset
  Memory
  4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x DisplayPort**
  1 x HDMI® port***
  *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  Intel® 13th & 12th Gen Processors*
  1 x PCIe 5.0 x16 slot
  Intel® Z790 Chipset
  3 x PCIe 4.0 x16 slots (support x4 mode)
  1 x PCIe 3.0 x1 slot
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage
  Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® 13th & 12th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  Intel® Z790 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports
• Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
  Ethernet
  1 x Realtek 2.5Gb Ethernet
