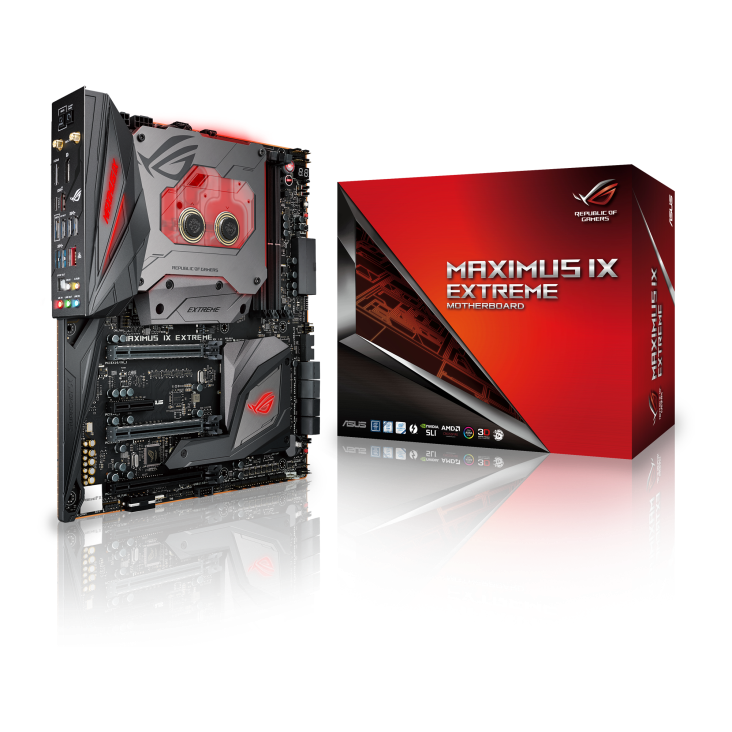

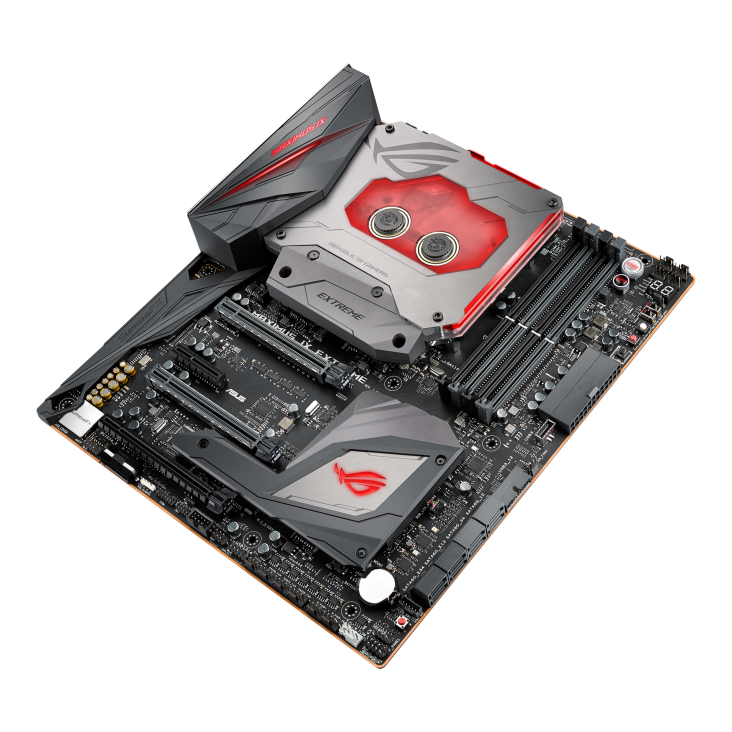

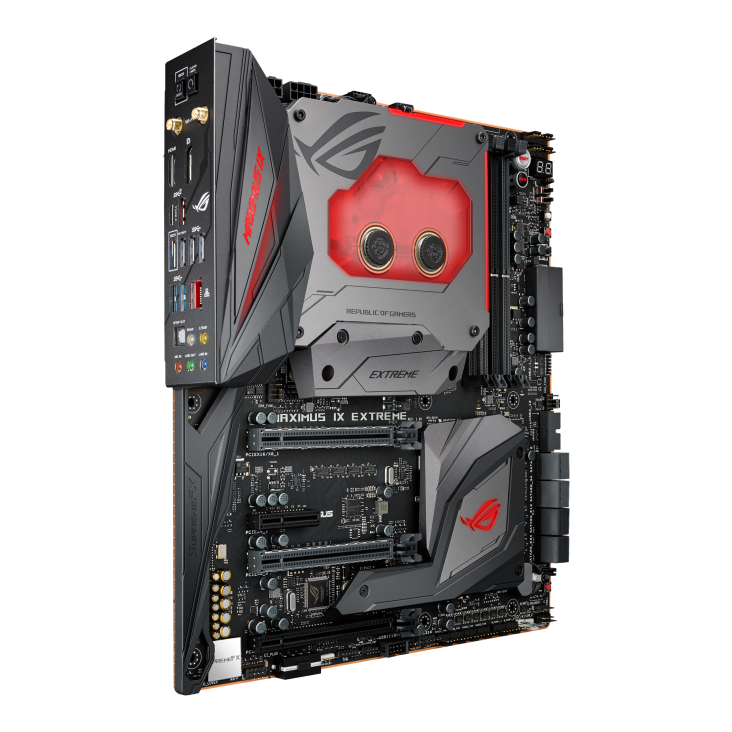

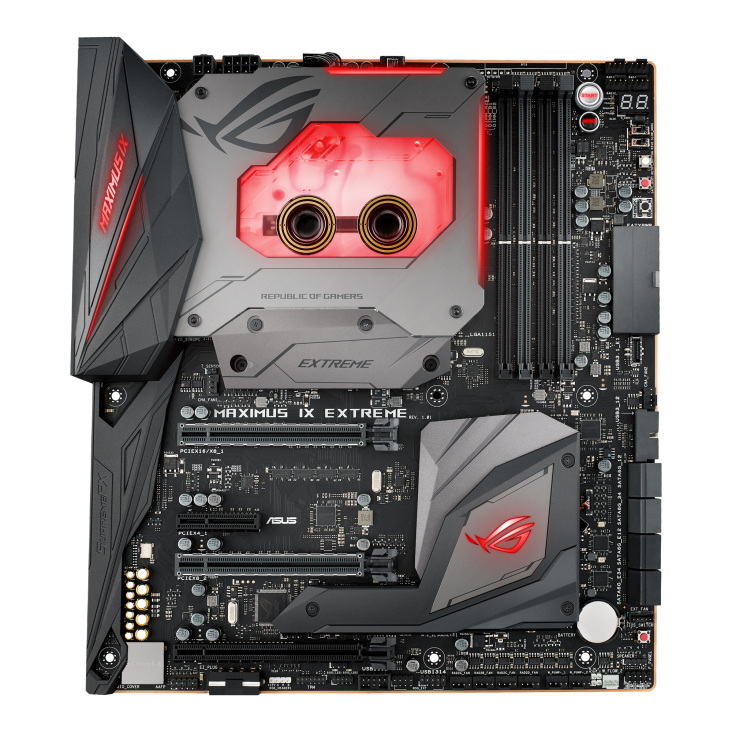

ASUS MB ROG MAXIMUS IX EXTREME

| April 20, 2024 | MOTHERBOARDS | No Comments

SMB00033
ASUS MB ROG MAXIMUS IX EXTREME (CPU Support Gen 6 & 7)
( 4x DDR4, MAX 64GB, 4133(OC) MHz / M.2 Slots x2 / WIFI / Display Port x1 / HDMI x1 / Clear CMOS Button x1 / EATX ) LGA 1151
$599

  • CPU
  • Intel® Socket 1151for 7th Generationfor 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  • Supports Intel® 14nm CPU
  • Supports Intel® Turbo Boost Technology 2.0
  • * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  • * Refer to www.asus.com for CPU support list
  • Chipset
  • Intel® Z270
  • Memory
  • 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/2666(O.C.)/2400(O.C.) MHz Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
  • Multi-VGA output support : HDMI/DisplayPort 1.2 ports
  • Integrated Graphics Processor- Intel® HD Graphics support
  • – Supports HDMI with max. resolution 4096 x 2160 @ 24Hz
  • – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  • Maximum shared memory of 1024 MB (for iGPU exclusively)
  • Multi-GPU Support
  • Supports NVIDIA® 2-Way SLI® Technology
  • Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
  • 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
  • 1 x PCIe 3.0 x4 *1
  • 1 x PCIe 3.0/2.0 x16
  • Storage
  • 8 x SATA 6Gb/s port(s)*2,
  • Intel® Z270 Chipset :
  • Supports Intel® Smart Response Technology*3
  • Intel® Rapid Storage Technology supports*3
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  • Intel® Optane™ Memory Ready *4
  • Support Raid 0, 1, 5, 10
  • LAN
  • ROG GameFirst IV
  • Intel® I219V
  • Anti-surge LANGuard
  • Wireless Data Network
  • Supports 2×2 MU-MIMO
  • Wi-Fi 802.11 a/b/g/n/ac
  • Bluetooth
  • Bluetooth V4.1*5

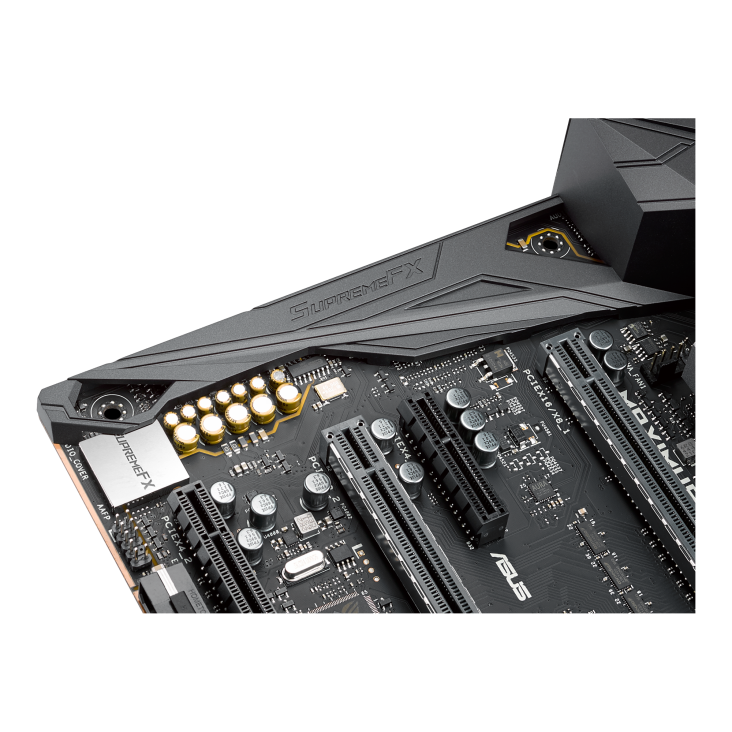

  • Audio
  • – High quality113dBSNR stereo playback outputand110dBSNR recording input
  • – Sonic Studio III
  • – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
  • ROG SupremeFX8-Channel High Definition Audio CODEC S1220
  • – Impedance sense for front and rear headphone outputs
  • – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – SupremeFX Shielding Technology
  • – ESS® ES9023P
  • – Supports up to 32-Bit/192kHz playback *6
  • Audio Feature :
  • – Sonic Radar III
  • USB Ports
  • Intel® USB 3.1 controller :
  • 2 x USB 3.1 port(s) (2 at back panel, )
  • 6 x USB port(s) (4 at back panel, )
  • 2 x USB port(s) (2 at back panel, )
  • Intel® Z270 Chipset : *7
  • Intel® Z270 Chipset :
  • ASMedia® USB 3.1 Gen 2 controller :
  • 1 x USB 3.1 Gen 2 front panel connector port(s)
  • ASMedia® USB 3.1 Gen 1 controller :
  • 4 x USB 2.0 port(s)
  • ROG Exclusive Features
  • KeyBot II
  • – X.M.P.
  • – ClrCMOS
  • – Power On
  • MemOK! Button
  • – NexFET™ Power Block MOSFET
  • ROG RAMDisk
  • ROG RAMCache II
  • – O.C. Profile
  • Clear CMOS button
  • ROG CloneDrive
  • Slow Mode
  • ReTry Button
  • Safe Boot Button
  • LN2 Mode
  • GameFirst IV
  • Mem TweakIt
  • ROG CPU-Z
  • Pre-mounted I/O Shield
  • Start Button
  • Reset Button
  • ROG Aura
  • Extreme Engine Digi+ :
  • – MicroFine Alloy Chokes
  • – 10K Black Metallic Capacitors
  • UEFI BIOS features :
  • – Tweakers´ Paradise
  • – ROG SSD Secure Erase
  • – Graphic Card Information Preview
  • Extreme Tweaker
  • USB BIOS Flashback®
  • Special Features
  • – ASUS Q-LED ()
  • SafeDIMM slot
  • – MemOK!
  • Overclocking Protection :
  • ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
  • – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
  • ASUS Exclusive Features :
  • – AI Suite 3
  • – Ai Charger
  • ASUS Q-Design :
  • – ASUS Q-Code
  • – ASUS Q-DIMM
  • – ASUS Q-Connector
  • Gaming Aesthetics :
  • – 3D printing friendly
  • – ASUS C.P.R.(CPU Parameter Recall)

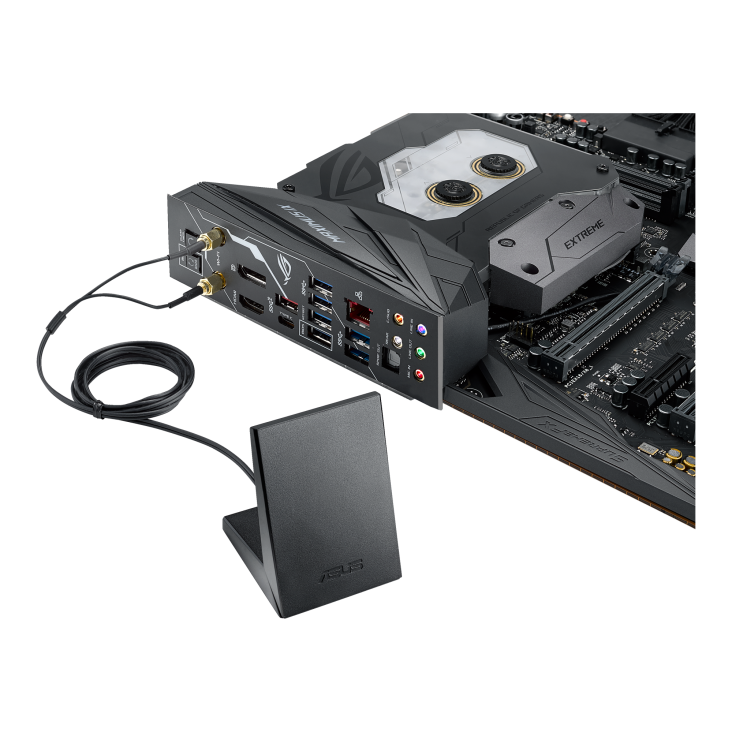

  • Back I/O Ports
  • 2 x USB 3.1 Gen 2 ()Type-A + USB Type-CTM,
  • 6 x USB 3.1 Gen 1 (blue)
  • 5 x LED-illuminated audio jacks
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 1 x Optical S/PDIF out
  • 1 x Clear CMOS button(s)
  • 1 x USB BIOS Flashback® Button(s)
  • Internal I/O Ports
  • 1 x AAFP connector
  • 2 x W_PUMP+ connector
  • 2 x W_Pump+ Header
  • 1 x 9 pin Monoblock sensor
  • 1 x ROG extension (ROG_EXT) header(s)
  • 1 x MemOK! Button
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x 4-pin EZ_PLUG Power connector(s)
  • 1 x System panel(s) (Q-Connector)
  • 1 x EZ Plug connector(s) (4-pin Molex power connector)
  • 1 x BIOS Switch button(s)
  • 1 x EXT_Fan header
  • 1 x USB 3.1 Gen 2 front panel connector
  • 1 x RSVD Switch
  • 8 x Radiator Fan Headers
  • 2 x Aura RGB Strip Headers
  • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x TPM connector(s)
  • 8 x SATA 6Gb/s connector(s)
  • 2 x Chassis Fan connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Slow Mode switch(es)
  • 1 x Thermal sensor connector(s)
  • 1 x Power-on button(s)
  • 1 x Reset button(s)
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x LN2 Mode jumper(s)
  • 1 x Safe Boot button
  • 1 x ReTry button
  • 1 x T_Sensor Connector
  • 1 x W_IN header
  • 1 x W_OUT header
  • 1 x W_FLOW header
  • Accessories
  • 2 x Thermal sensor cable pack(s)

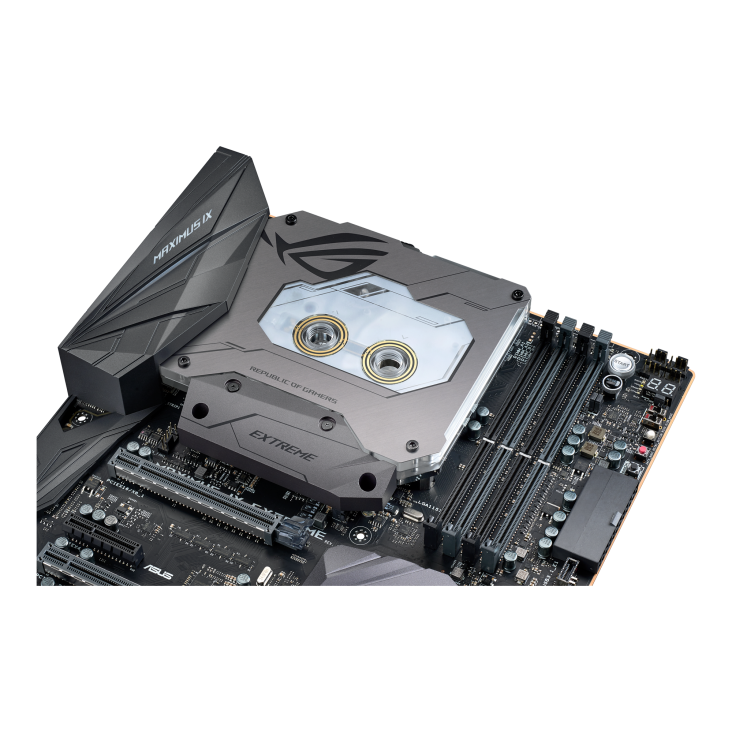

  • 1 x ROG Monoblock
  • 1 x ROG Monoblock Accessory pack
  • 1 x M.2 Heatsink package
  • 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
  • 8 x SATA 6Gb/s cable(s)
  • 1 x Fan Extension Card (3 x 4-pin fan out)
  • 1 x Fan Extension card screw pack
  • 1 x 10-in-1 ROG cable label
  • 1 x CPU installation tool
  • 1 x SLI HB BRIDGE(2-WAY-M)
  • 1 x USB drive with utilities and drivers
  • User´s manual
  • 1 x M.2 Screw Package
  • 1 x ROG big sticker
  • 1 x Q-Connector
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x ROG coaster(s)
  • BIOS
  • 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
  • Operating System
  • Windows® 8.1 64-bit *8
  • Windows® 7 32-bit *8
  • Windows® 7 64-bit *8
  • Windows® 10 64-bit
  • Form Factor
  • 12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
  • Extended ATX Form Factor
